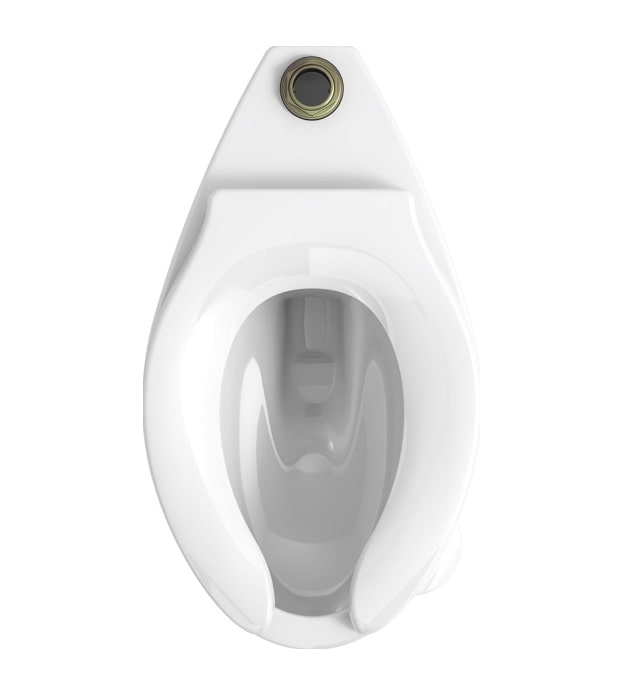

Kohler Wellcomme Ultra Floor-Mount Top Spud Flushometer Bowl | K-96053-B

Description

The Kohler Wellcomme™ Ultra Floor-Mount Flushometer Bowl (Top Spud) delivers exceptional performance and reliability for commercial restrooms. Featuring a revolutionary Ultra engine, it provides precise, hands-free flushing across 1.0 to 1.6 GPF, tolerating a wide range of water supply conditions found in both new construction and renovation projects.

Its durable construction, refined aesthetic design, and additional bolt holes ensure stability and long-lasting use. Compatible with all types of flush valves — diaphragm, piston, manual, or electronic — the Wellcomme Ultra is perfect for small to medium-sized restrooms and stalls, combining efficiency, hygiene, and modern design in one dependable solution.

Kohler Wellcomme Ultra Floor-Mount Top Spud Flushometer Bowl | K-96053-B-0 Features:

• Elongated bowl, standard height
• 4-bolt base for added stability
• 1-1/2″ (38 mm) top spud
• 10″ x 7″ (254 mm x 178 mm) water surface
• 10″ or 12″ (254 or 305 mm) rough-in
• 1.0 gpf (3.8 lpf), 1.1 gpf (4.2 lpf), 1.28 (4.8 lpf), or 1.6 gpf (6.0 lpf) depending on flushometer specified
• 2-1/8″ (54 mm) fully glazed trapway

Technology

• Designed to outperform competitors in bowl cleanliness and plug resistance
• Maximum waste removal
• Engineered for toilet seat cover removal
• Excellent bowl rinse
• Engineered to flush effectively in buildings with low supply pressure and flow
• Maximum drain line carry at all flush volumes per ASME standard

Installation

• Replaces Wellcomme K-4350-B. Height and footprint may vary
• Four-bolt installation

SPECIFICATIONS

You can download the Kohler Wellcomme installation instruction sheet here.

To find out more information about Kohler products warranty and register your product, please click here.

To check matching Kohler Automatic Flushometer, please click here.

For more specification, please see the technical sheet below;

SKU: K-96053-B-0

 TECHNICAL SHEET
