Afwall Millennium Wall-Hung Toilet Bowl 3351101.020

Description

The Afwall Millennium FloWise Elongated Wall-Hung Toilet bowl 3351101.020 from American Standard is an exceptional toilet with premier flushing power at lower flush volumes to conserve water when combined with the Ultima Selectronic Flush Valve. Increased static weight load capacity assures strength and durability in a clean, streamlined design. Afwall Millennium 3353101.020 meets definition of HET (High Efficiency Toilet) when used with a high efficiency flush valve (1.1 gpf -1.6 gpf or 1.28/1.1 gpf dual flush).

Maximum Performance (MaP) testing performed by IAPMO R&T Lab. MaP Report conducted by Veritec Consulting, Inc.and Koeller and Company.

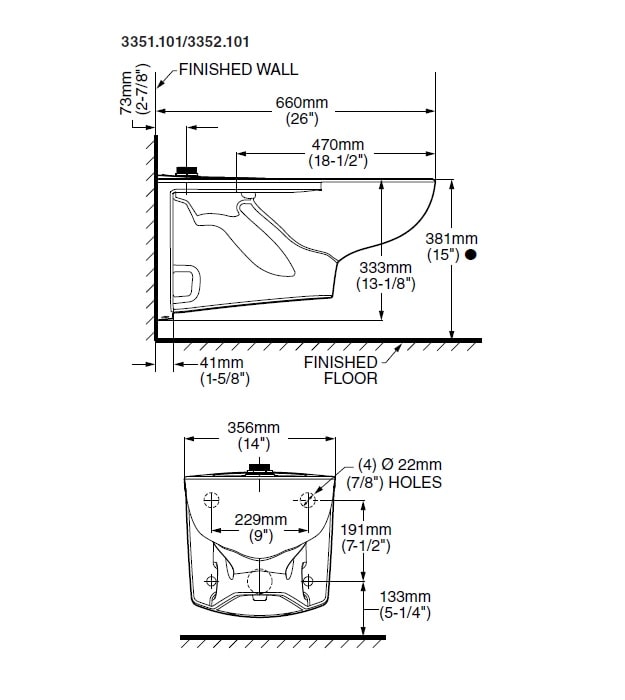

Nominal Dimensions:  660 x 356 x 381 mm (26″ x 14″ x 15″). Recommended working pressure– between 25 psi at valve when flushing and 80 psi static. Fixture only, less seat, bolt caps, and flushometer valve.

American Standard Afwall Millennium Wall-Hung Toilet Bowl 3351101.020 Features:

• Top-spud bowl only: Seat and valve sold separately
• Compatibility: Works with the American Standard Ultima Selectronic Exposed Toilet Flush Valve 1.0 gpf-1.6 gpf/3.8 Lpf-6.0 Lpf, sold separately
• Highest Maximum Performance (MaP) score: Achieves highest score of 1,000 grams when combined with 1.1 – 1.6 gpf; achieves impressive score of 800 grams when combined with 1.0 gpf
• EverClean® antimicrobial surface: Inhibits the growth of stain- and odor-causing bacteria, mold and mildew
• Increased capacity: Static weight load of 1,000 lbs (453 kg). Not recommended for bariatric use
• Powerful flush: Direct-fed siphon jet flush action
• Fully glazed trapway: 2-1/8″ (54 mm); 2″ (51 mm) minimum ballpass
• Concealed trapway: Features condensation channel
• Inlet spud: 1-1/2″ (38 mm)
• 1-1/2″ (38 mm) inlet spud

SPECIFICATIONS

You can download the installation instructions here.

To find out more information about American Standard products warranty terms and conditions, please click here.

For more specification, please see the technical sheet below;

SKU: 3351101.020

 TECHNICAL SHEET
